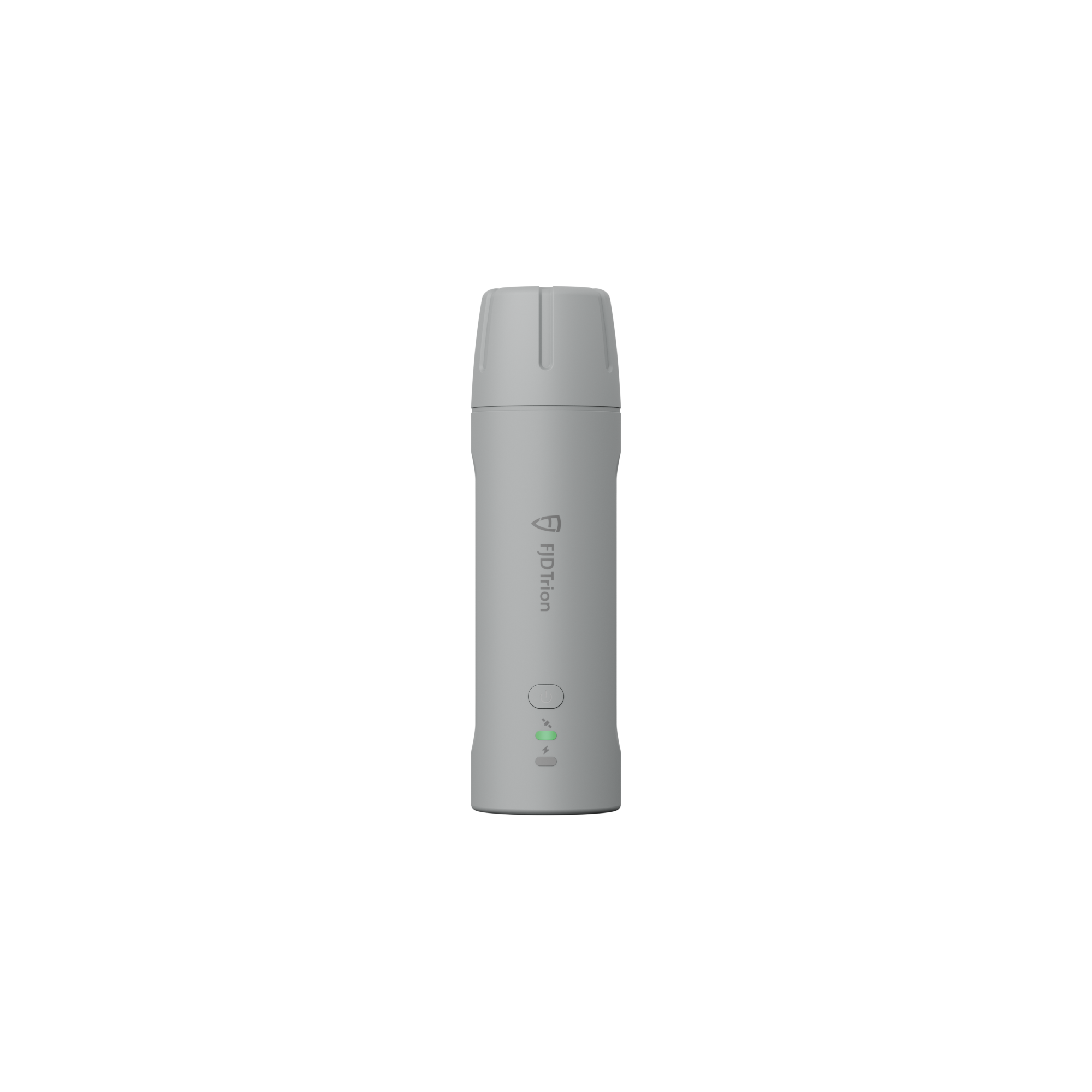

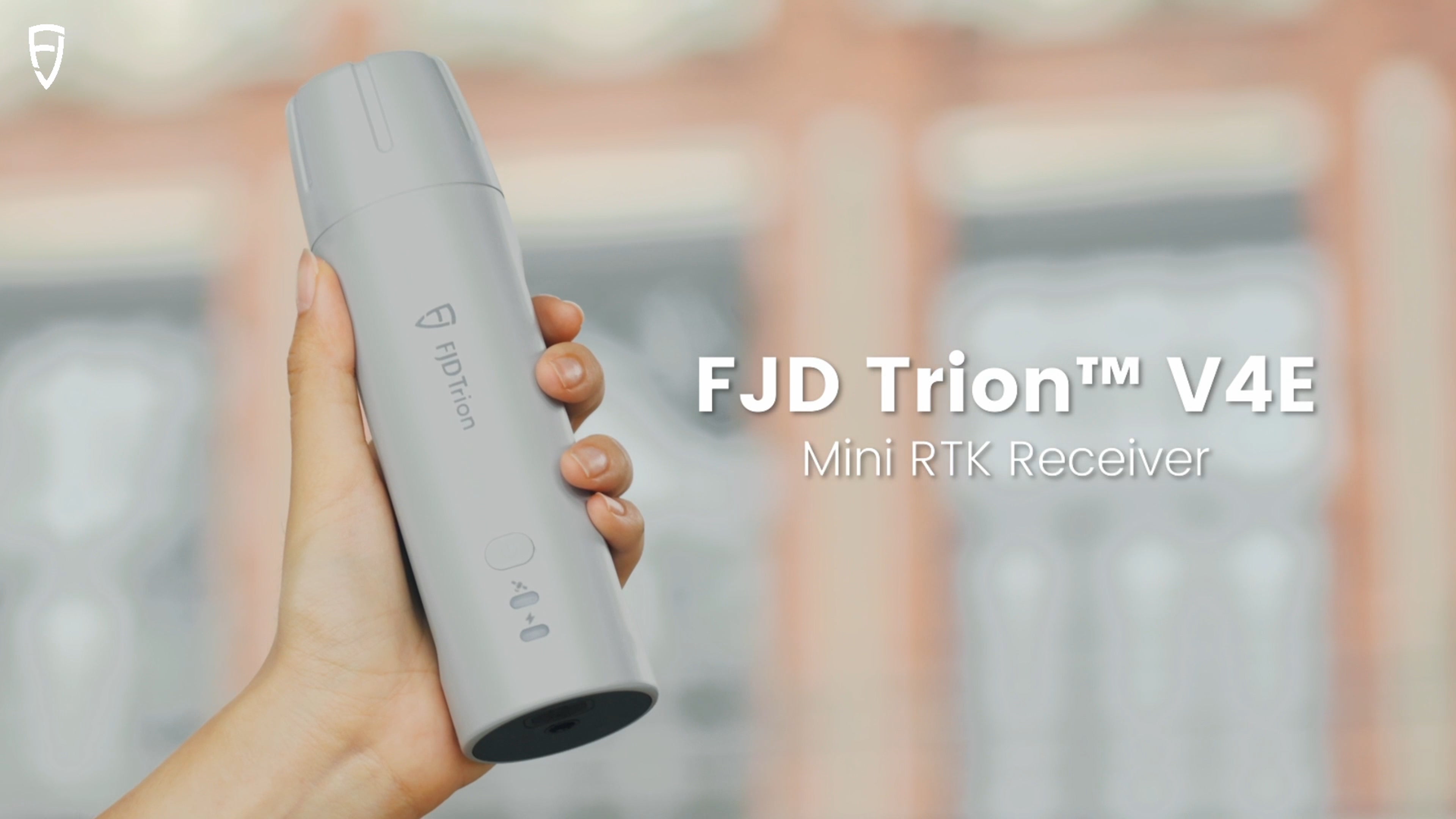

FJD Trion V4E Mini RTK Receiver

€799,00 EUR

Descrizione

Small in Hand, Boundless on Land

The FJD Trion V4E Mini RTK Receiver breaks the boundaries of traditional GNSS receivers with handheld convenience and portable precision. Weighing only 320g, the V4E delivers centimeter-level positioning without centering rods, making it perfect for individuals, teams, and professionals on the go. Easy to use and budget-friendly, it can instantly unlock the power of high-accuracy surveying.

·Small Size, Big Power

Deliver centimeter-level accuracy with ±1.5 cm static precision. It supports 1408 channels and covers all GNSS constellations, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS. Weighing only 320g, the V4E offers broad compatibility with popular correction services, supporting NTRIP connectivity with RTCM 2.3, RTCM 3.x, and CMR.

·Built Tough for All-Day Efficiency Stay

Powered up for the entire workday. It can run for over 12 hours and takes less than 3 hours to charge. You can even keep the V4E working while charging it with a power bank, so your work is never interrupted. With IP67-rated protection against water and dust, and resistance to drops from 1.2 meters, it's built to withstand tough environments.

·EASIER ACCESS TO FJD TECH ECOSYSTEM

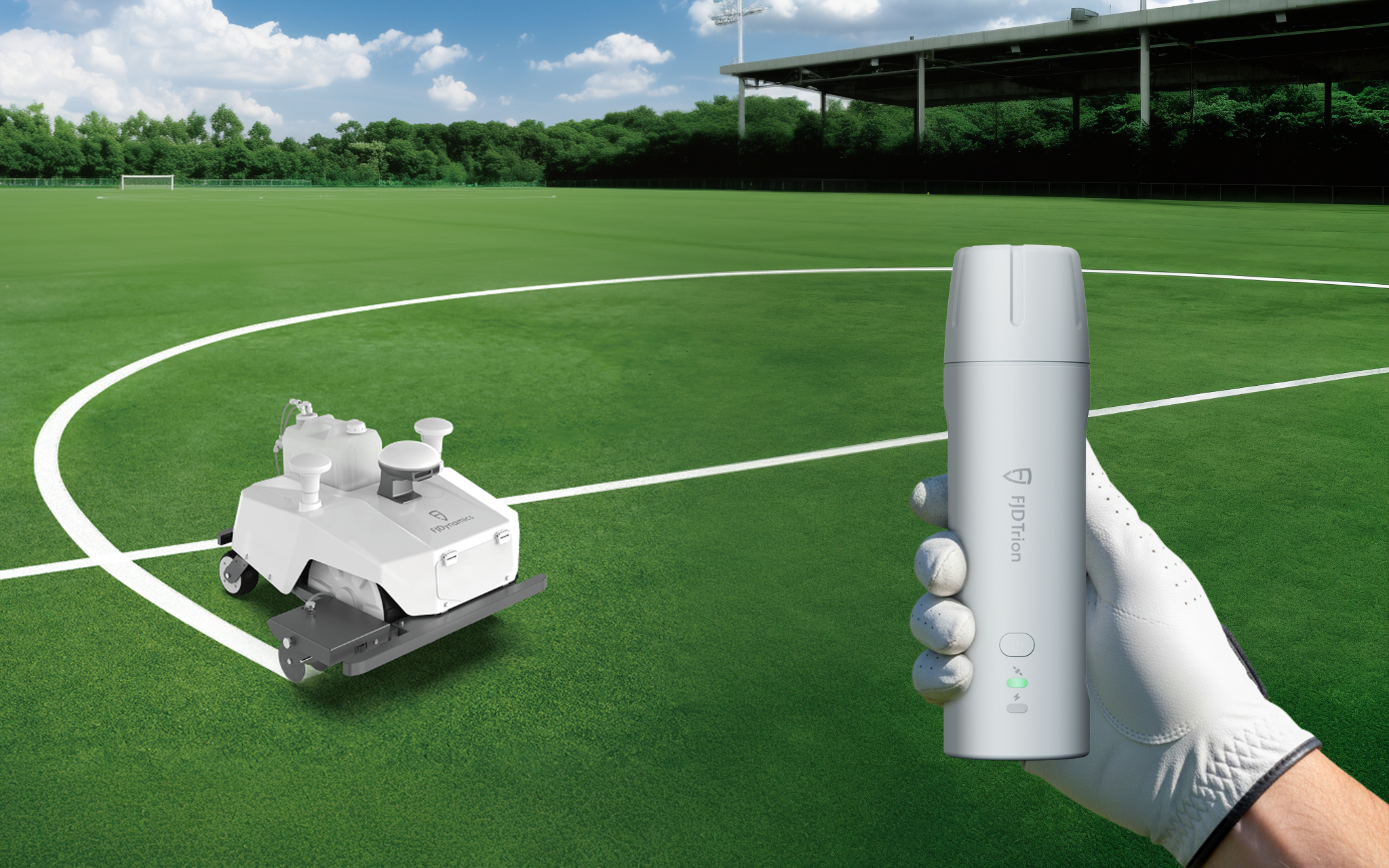

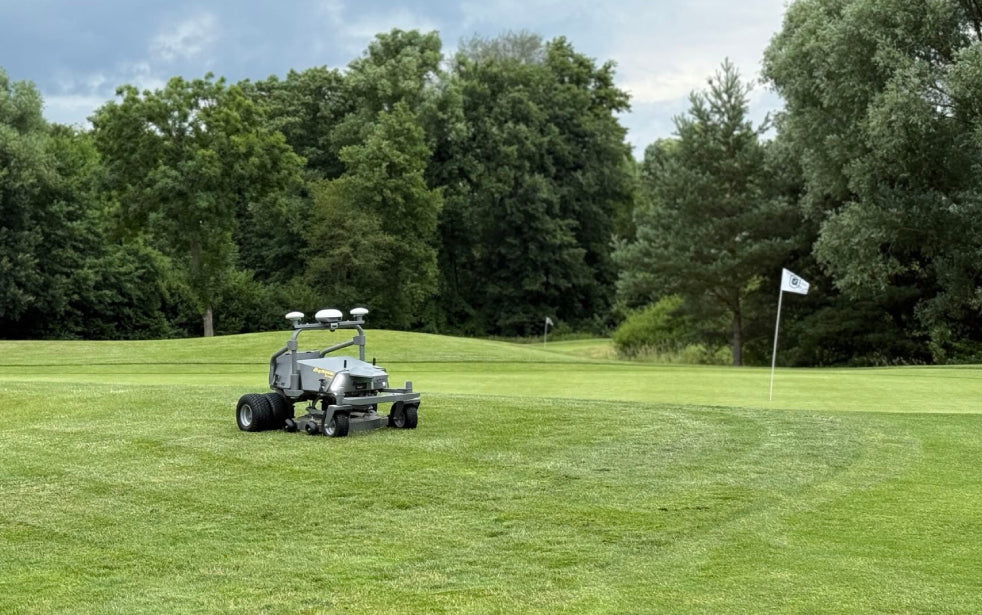

Access the FJD ecosystem quickly for a smooth workflow from field to machine. The GNSS data you collect with the V4E in the field can be directly used by FJD's farming autosteering systems, robotic mowers, and other smart devices for automated tasks. You don't have to convert the data, allowing you to work faster and reduce mistakes.

* Beyond the FJD ecosystem, its open design also supports customization to fit your unique needs.

Version: FJD Trion V4E mini RTK receiver

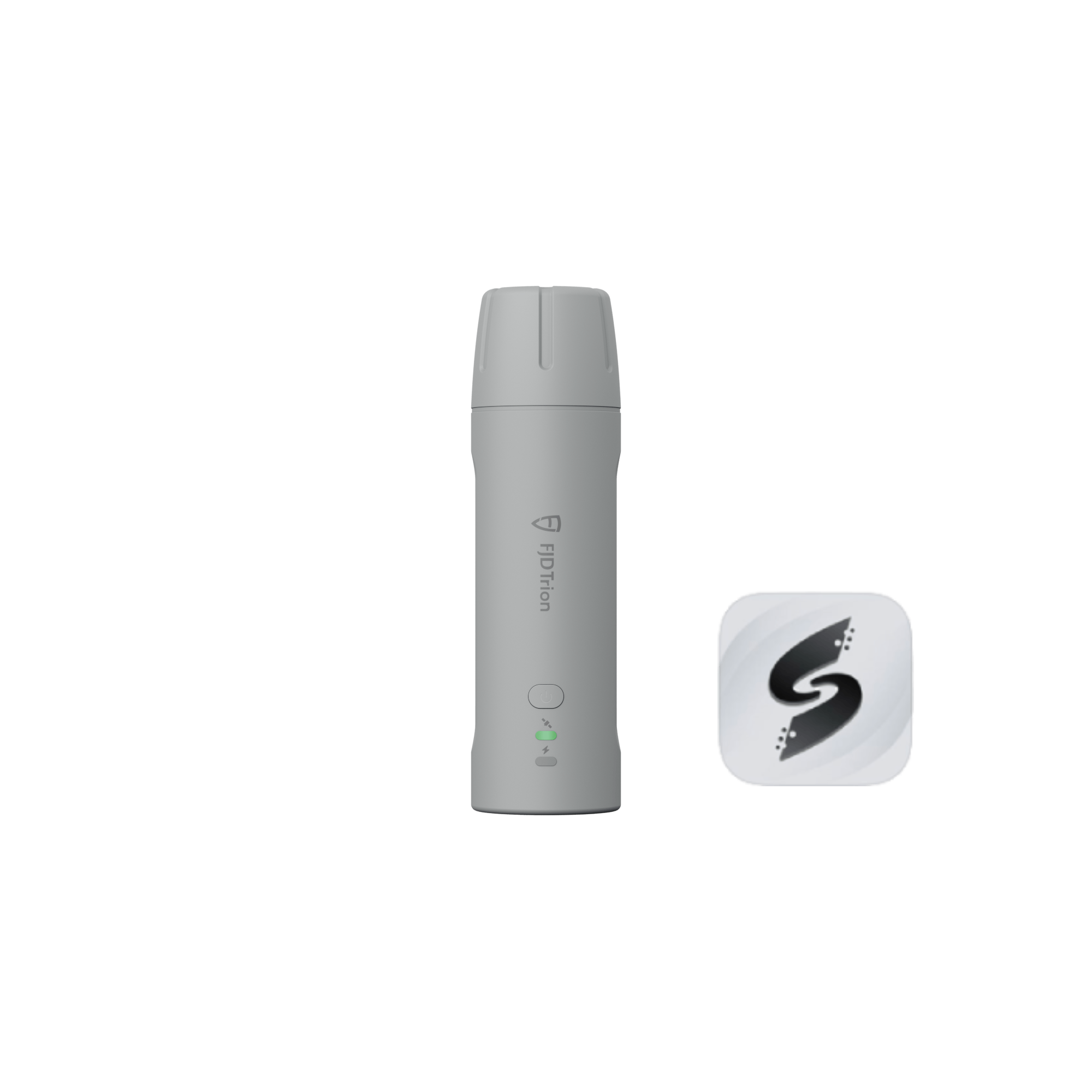

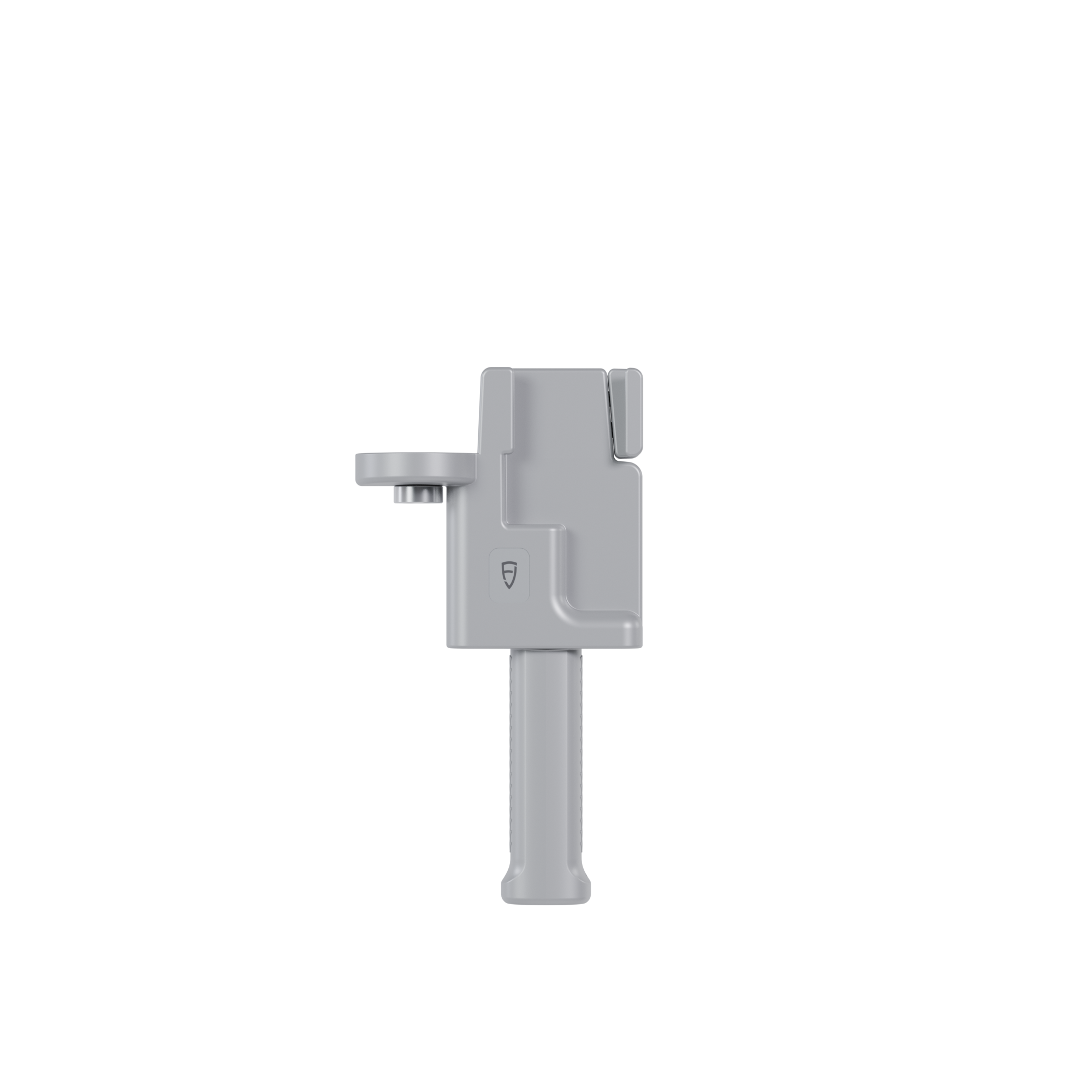

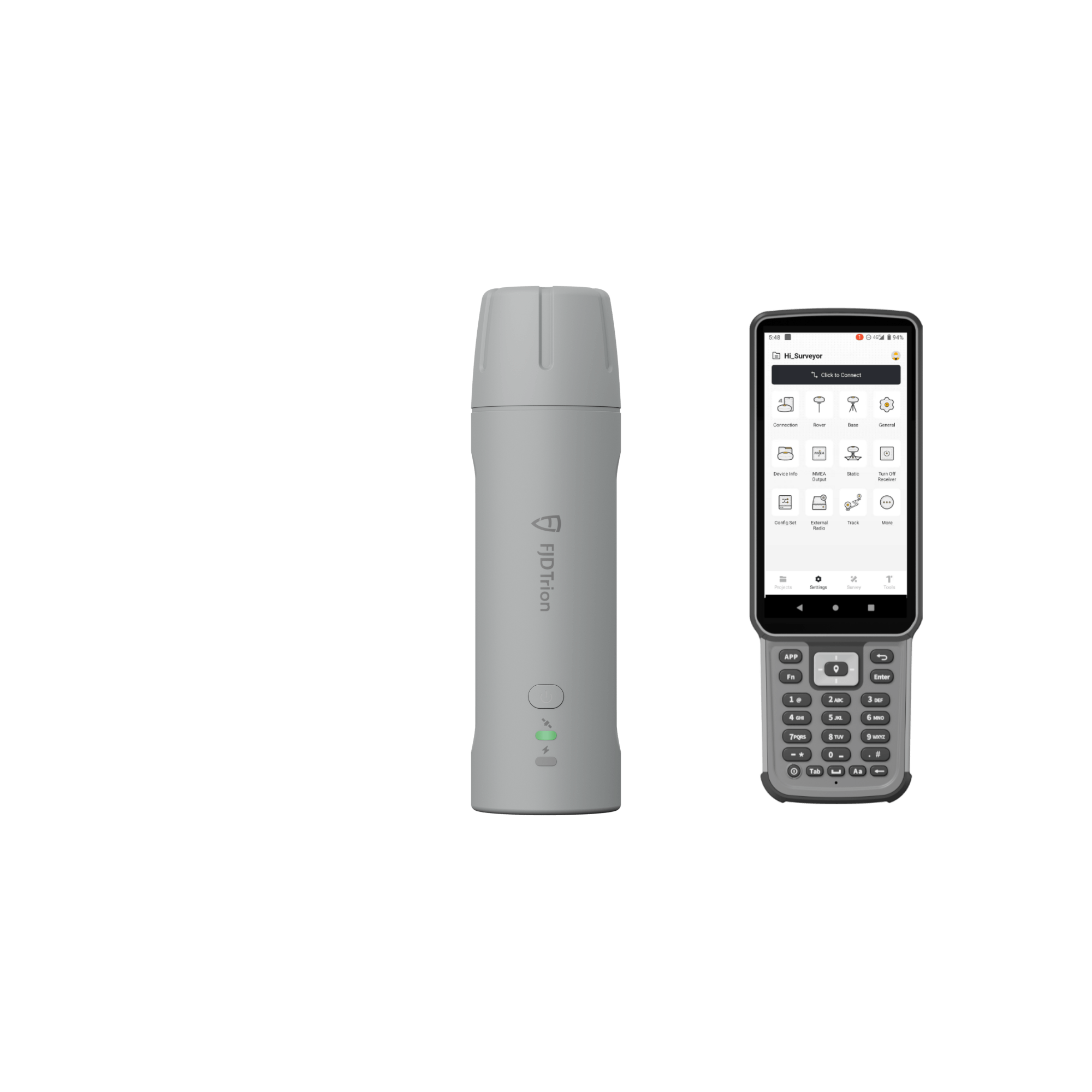

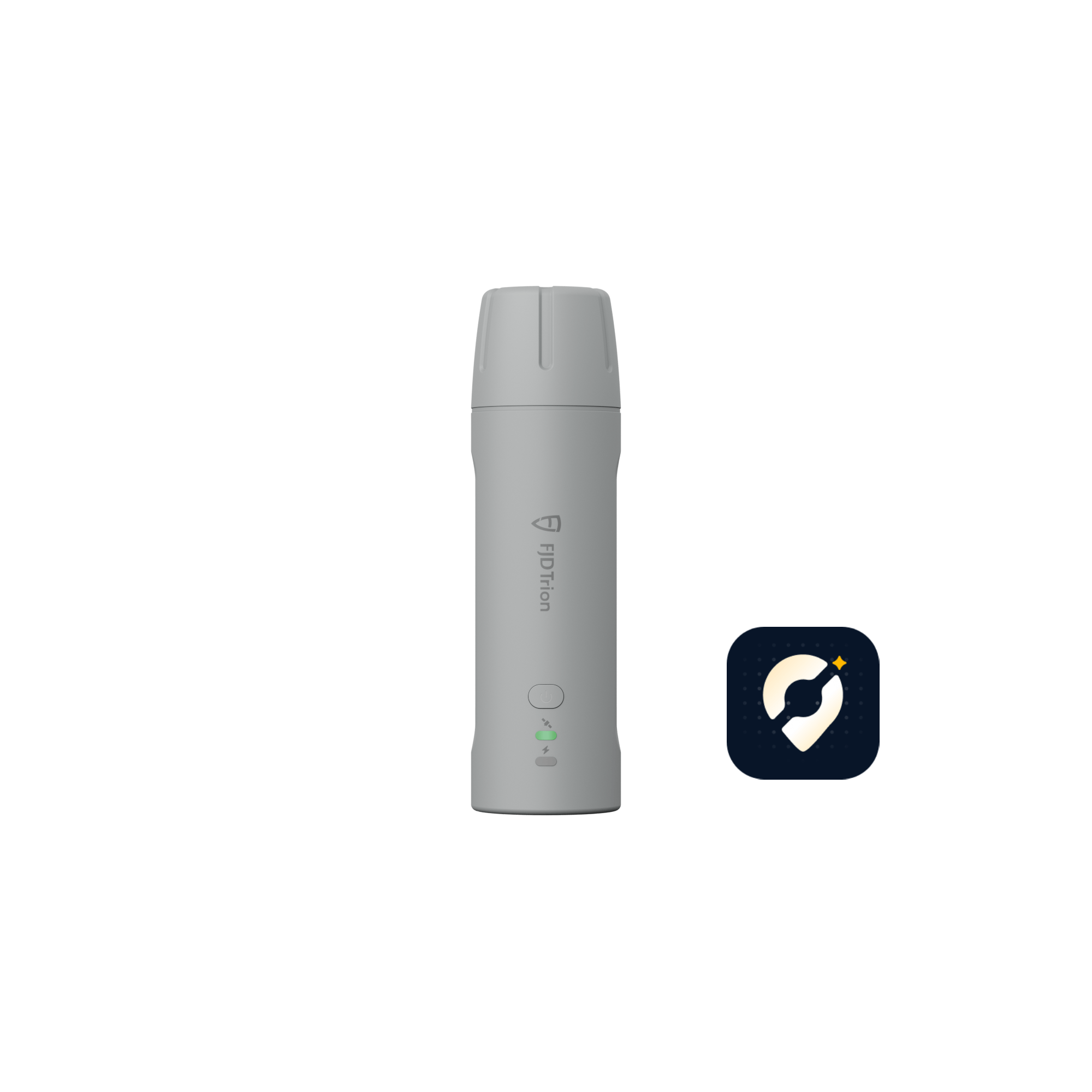

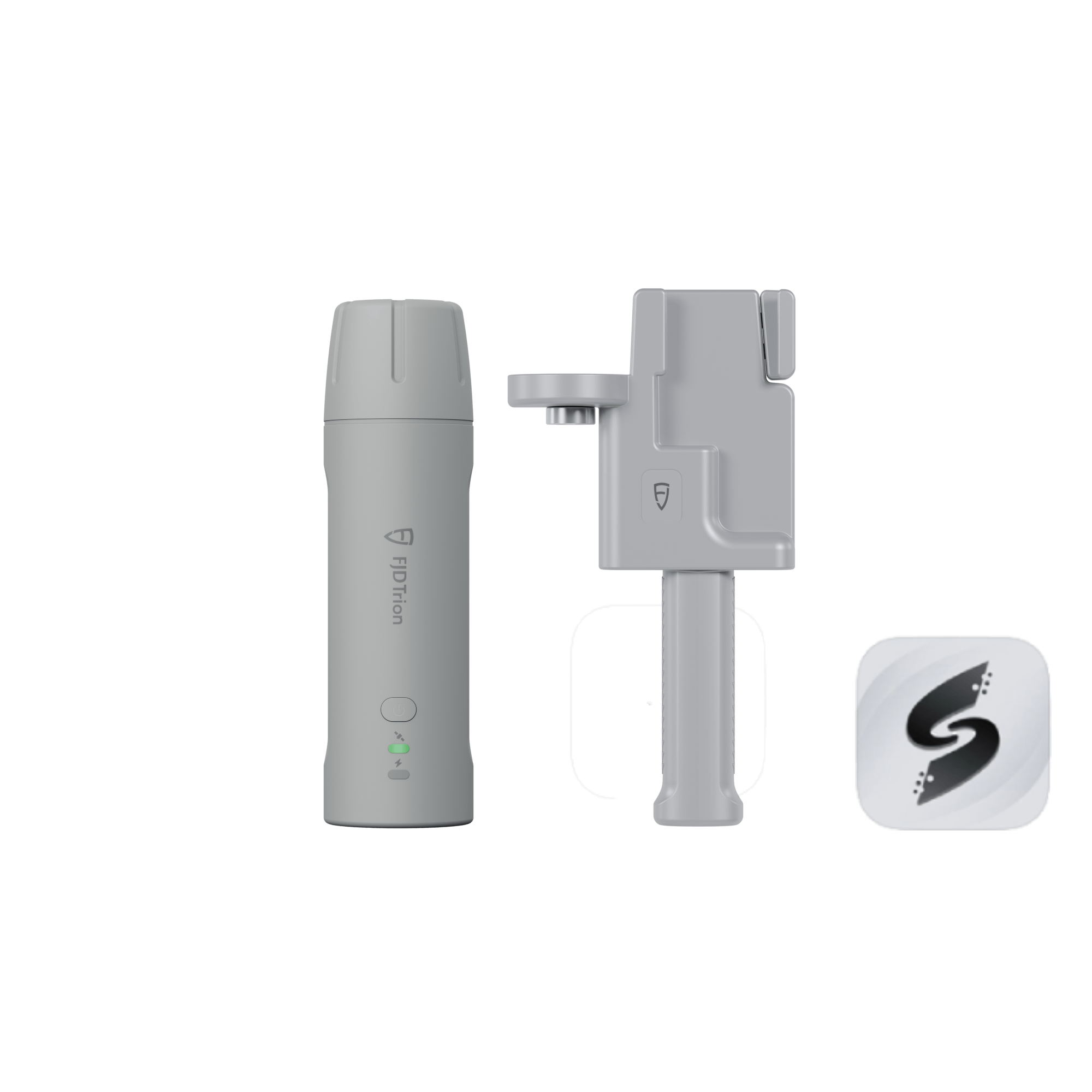

FJD Trion V4E mini RTK receiver FJD Trion V4E Survey Kit（with a Survey license） FJD Trion V4E Survey Kit（with E600 controller） FJD Trion V4E Scan Kit(with iPhone holder and Scan app） Iphone holder

Quantità:

Get it between -

Pay with Ease

Trusted Delivery

FJDynamics FJD Trion V4E Mini RTK Receiver

€799,00 EUR

Main Features

Global Constellations

Supported 1408 Channels

H≤0.8 cm+1 ppm

V≤1.5 cm+1 ppm

Built-in IMU

Max 30° Tilt Survey

Laser Measurement

Accuracy @3m≤3cm

Startup Time

Cold: ≤30s, Hot: ≤5s, RTK Init:5s

Pocket-Sized

Only 320g

Key Benefits

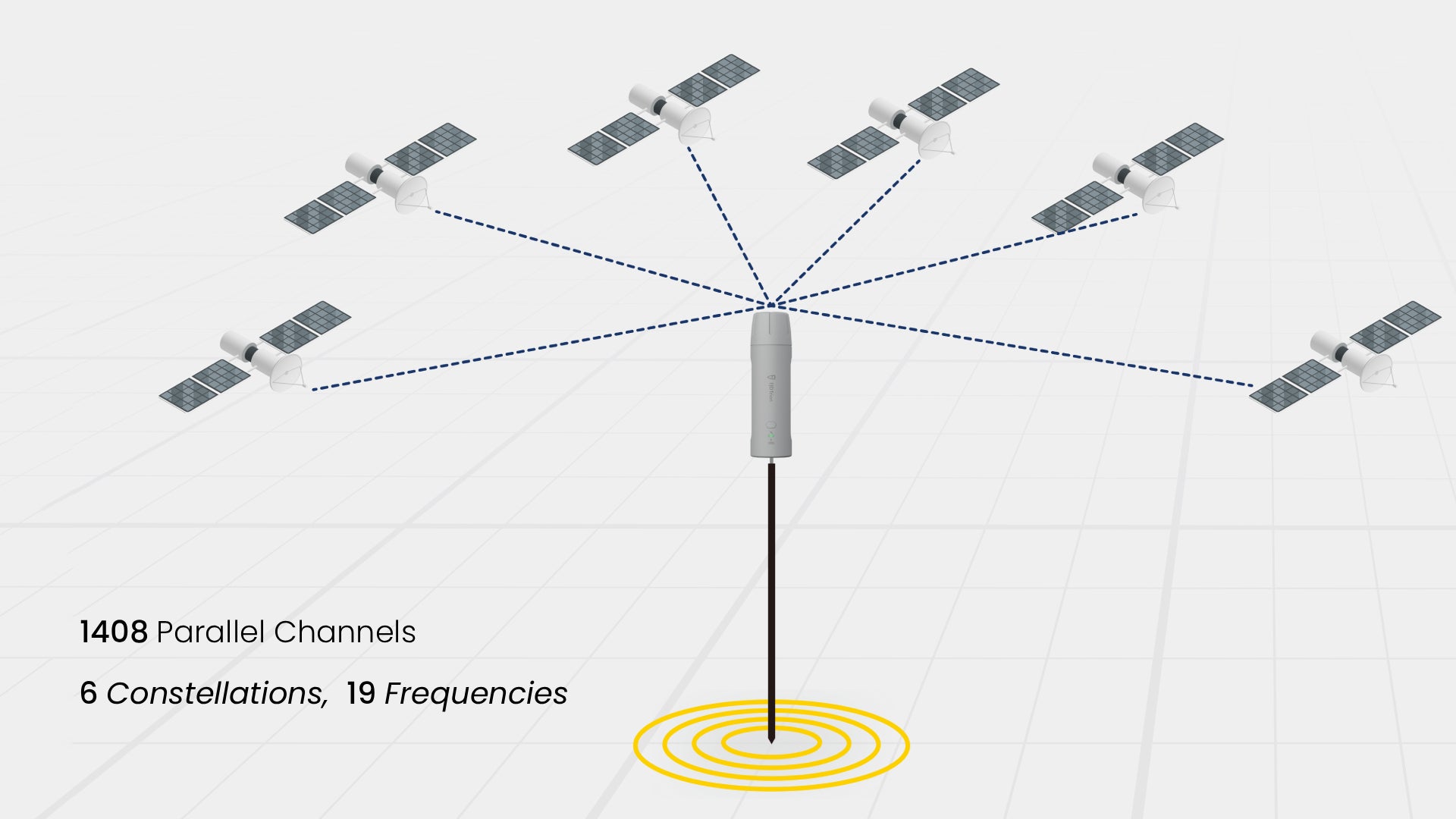

Small Size, Big Power

Deliver centimeter-level accuracy with ±1.5 cm static precision. It supports 1408 channels and covers all GNSS constellations, including GPS, BDS, GLONASS, Galileo, QZSS, and SBAS. Weighing only 320g, the V4E offers broad compatibility with popular correction services, supporting NTRIP connectivity with RTCM 2.3, RTCM 3.x, and CMR.

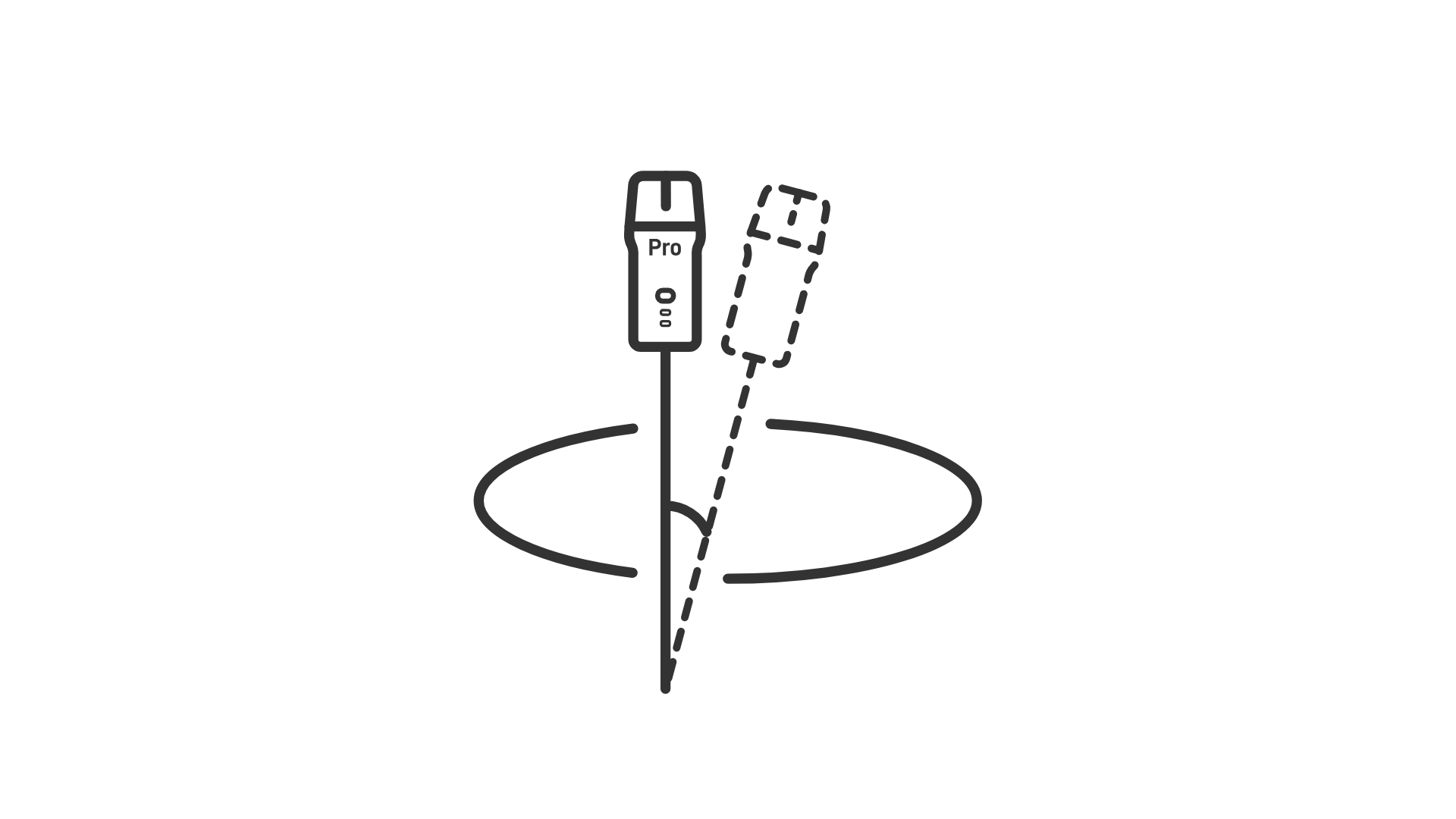

No Pole, No Problem

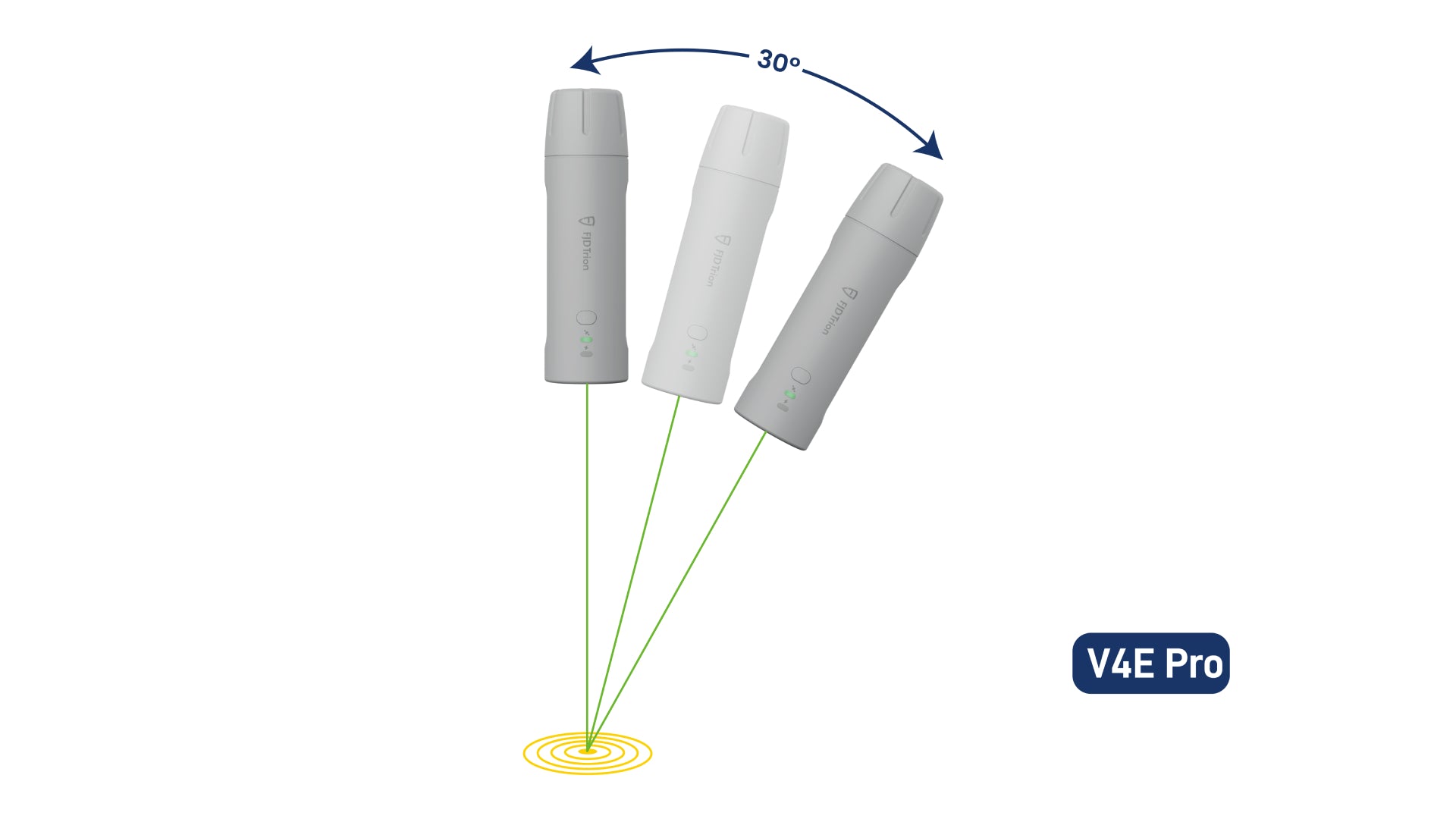

Compensate for tilt angles up to 30° (PRO version) with a built-in IMU, so you don't need to hold it perfectly straight. This gives you ≤3cm accuracy at a 3m distance without a leveling rod. Its onboard LiDAR rangefinder in the PRO version also achieves ±3mm precision at a 10m distance for precise point targeting.

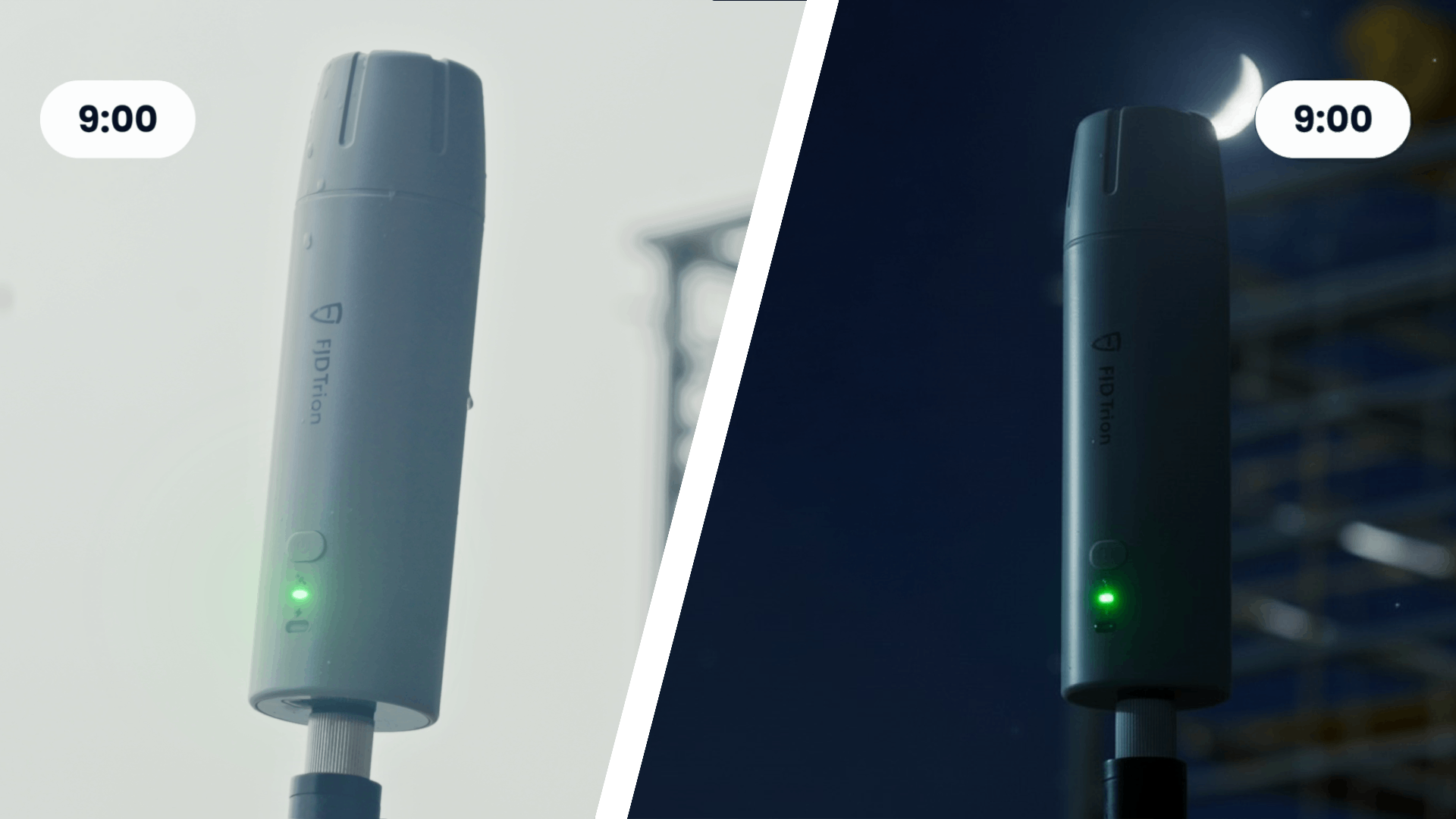

Built Tough for All-Day Efficiency

Stay powered up for the entire workday. It can run for over 12 hours and takes less than 3 hours to charge. You can even keep the V4E working while charging it with a power bank, so your work is never interrupted.

Protected. Durable. Reliable.

With IP67-rated protection against water and dust, and 1.2-meter drop resistance, the V4E is built to withstand tough environments. It keeps working reliably even when exposed to dust or accidental drops, ensuring consistent accuracy for your outdoor projects.

EASIER ACCESS TO FJD TECH ECOSYSTEM

Access the FJD ecosystem quickly for a smooth workflow from field to machine. The GNSS data you collect with the V4E in the field can be directly used by FJD's farming autosteering systems, robotic mowers, and other smart devices for automated tasks. You don't have to convert the data, allowing you to work faster and reduce mistakes.

* Beyond the FJD ecosystem, its open design also supports customization to fit your unique needs.

FJD Trion Survey App Introduction

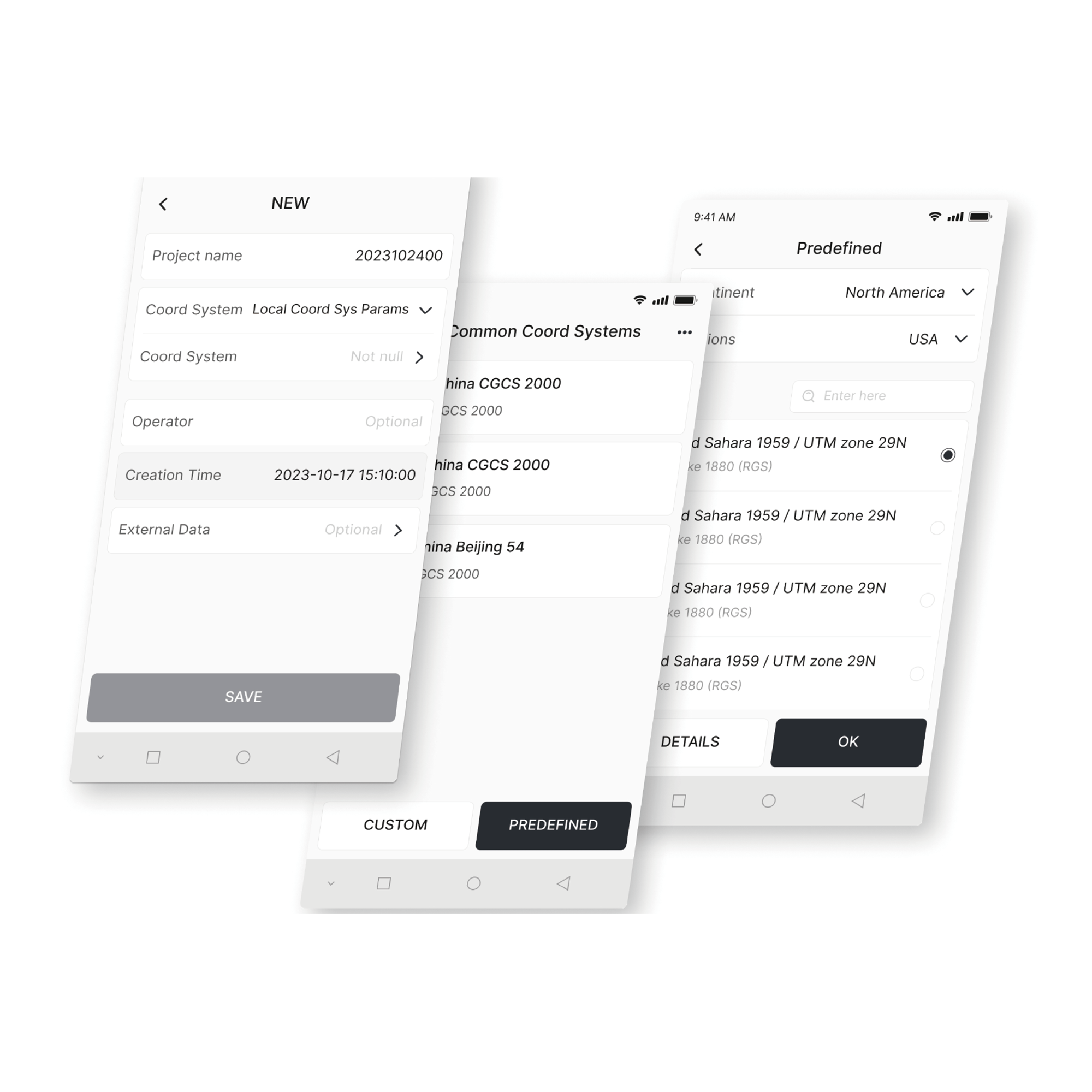

Coordinate Transformation

Create various plane and elevation models with over 8,000 coordinate systems, 70 ellipsoids, and 30 projections. You can also handle geoid corrections to meet your regional needs.

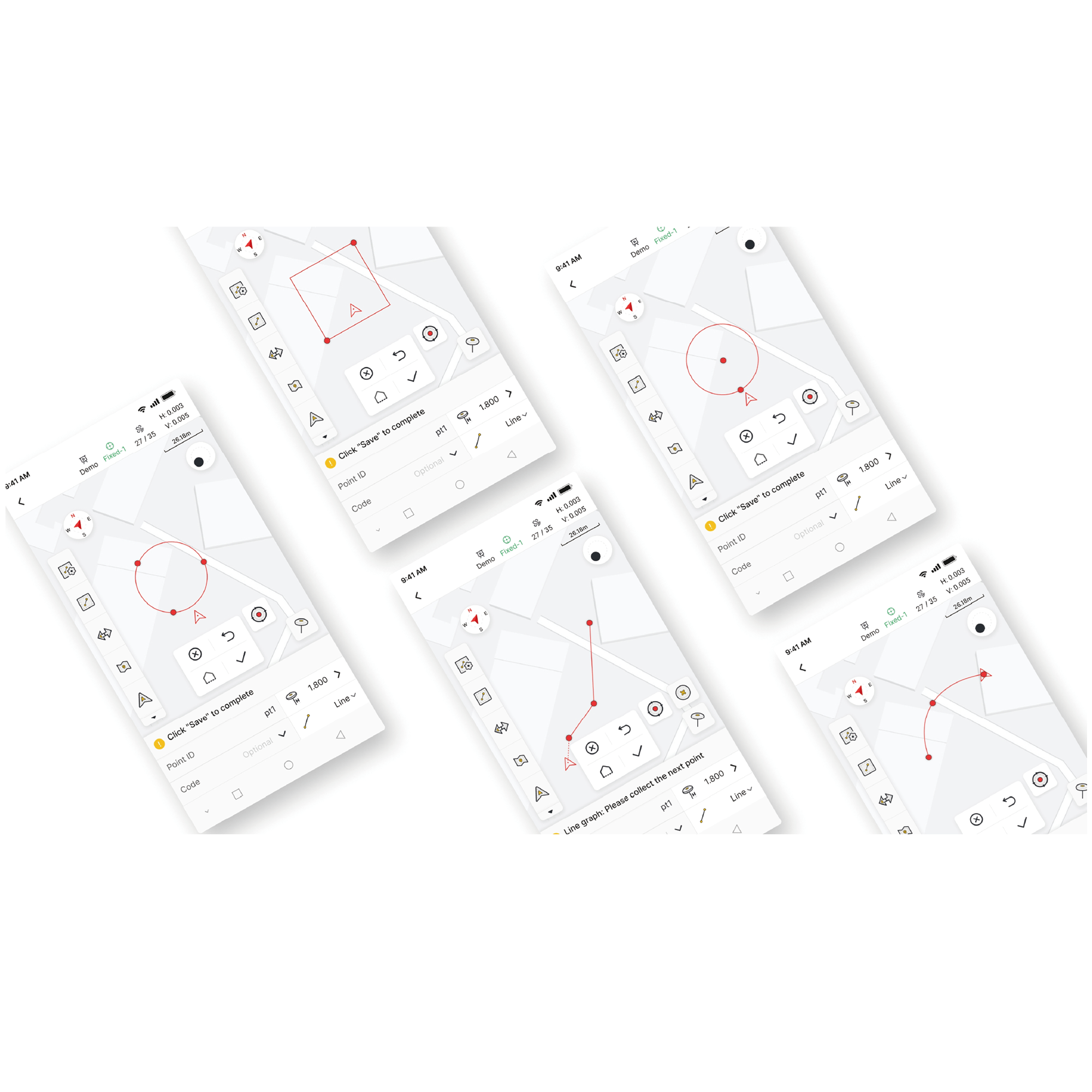

Measure & Draw

Get accurate positioning data and measure/draw 10 common shapes (including polylines, circles, and rectangles). You can also make code-based measurements with clear graphic categories to speed up post-survey mapping.

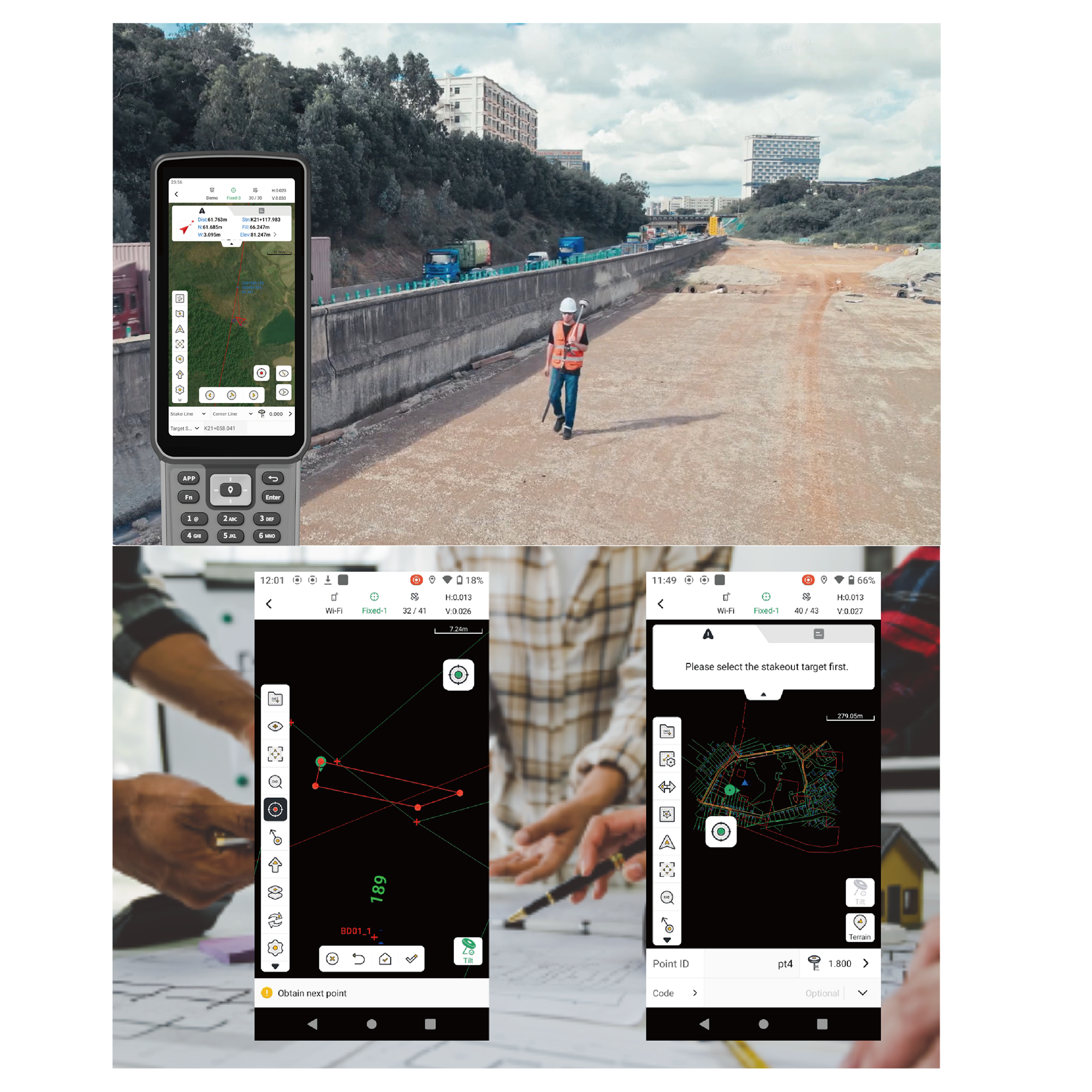

Efficient Staking & Smooth Coordination

After you process data in the Survey App, you can add custom labels and quickly export it into common CAD files for fast field staking. You can also use the app to view road details like station equations, alignments, cross-sections, and slopes. Once you've confirmed the staking information is correct, you can export it as a LandXML road file for fast sharing and smooth coordination.

Adaptable for Global Use

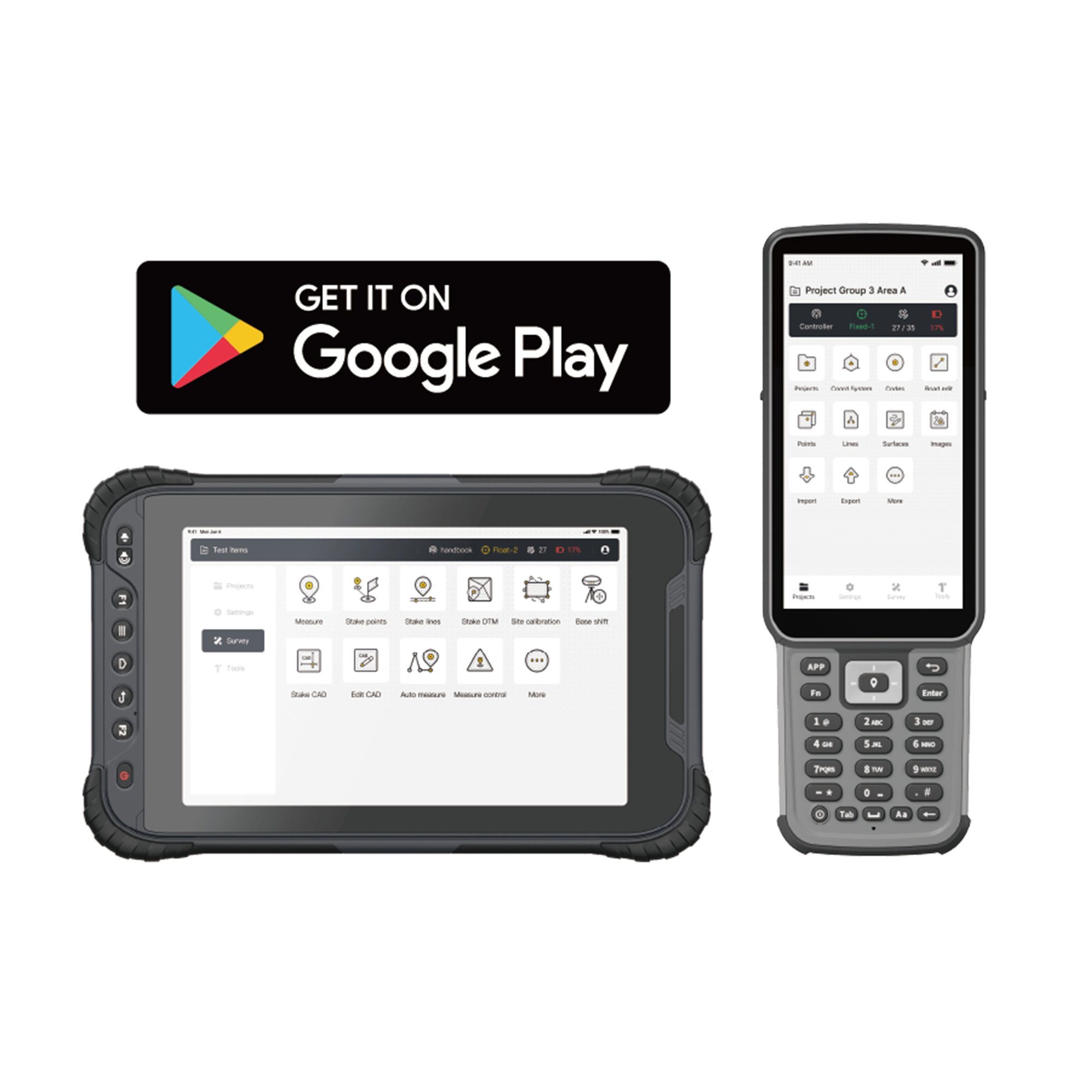

By supporting 16 languages, the Trion Survey App lets you process terrain data collected from V4E in your preferred language. Plus, you can freely switch between landscape and portrait modes for better data display and viewing on the 8-inch UA80 and 10-inch D10. This simplifies your workflow from field to processing, quickly getting your data ready for the next project.

Application Scenarios

Topographical Survey

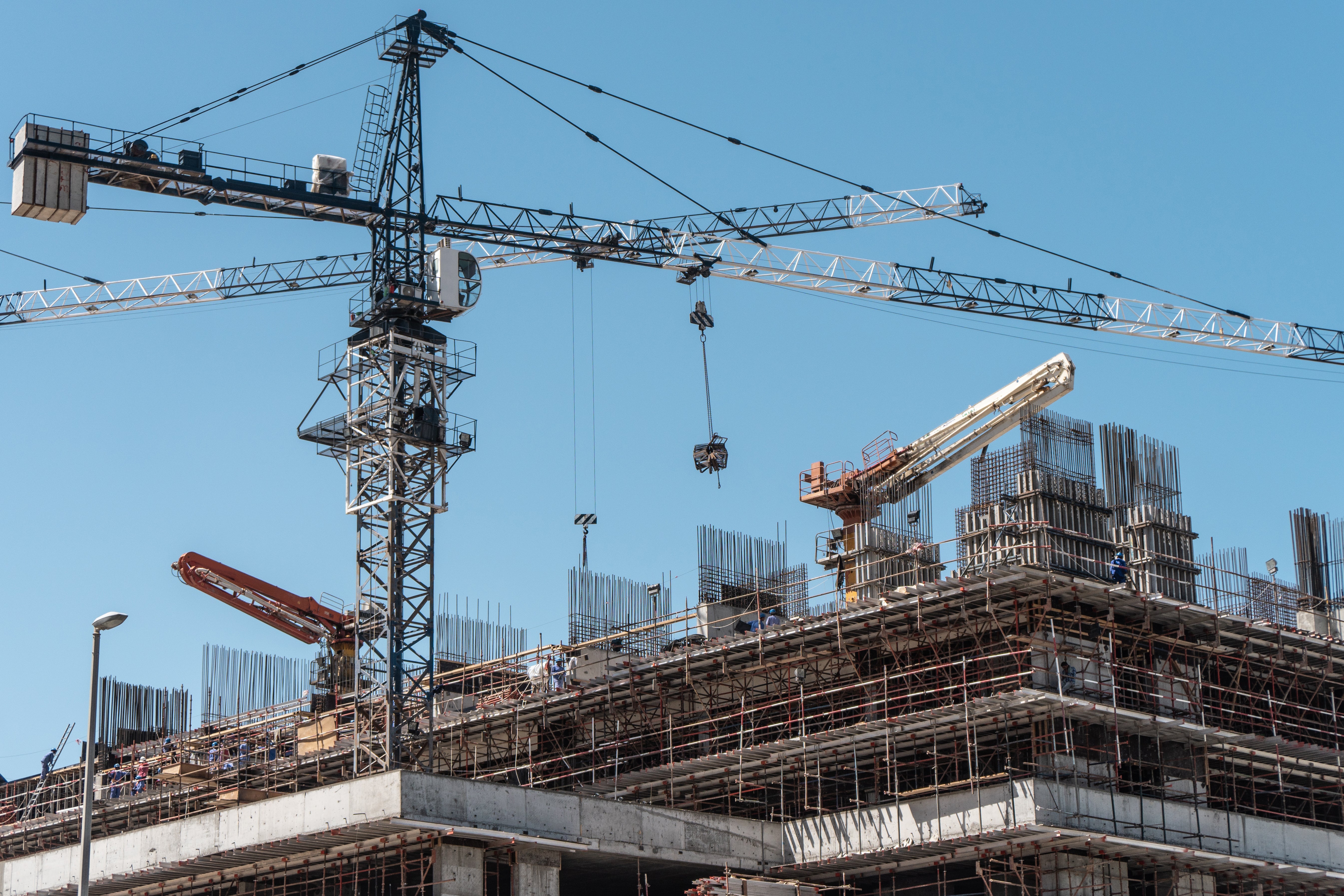

Construction & BIM

Utilities & Public Works

Road Surveying

Forestry & Agriculture

Quick Robotic Integration

Specifications

GNSS

Channels

1408 channels

GPS

L1C/A, L2P, L5

GLONASS

G1, G2

BDS

B1I, B2I, B3I, B1C, B2a, B2b*

QZSS

L1, L2C, L5

Precision and Reliability

Signal Reacquisition

≤1s

Time to First Fix

Cold start≤30s; Hot start≤5s

Initialization Data Reliability

＜99.9%

Data Update Rate

Measurement & Positioning:
1Hz, 2Hz, 5Hz, 10Hz, 15Hz, 20Hz

Single Point Solution Accuracy (RMS)

H≤1.5 m, V≤2.5 m

Electrical and Interface Parameters

Charging Specs

5V/2A

Power Consumption

≤1.5W

Electrical Interface

USB 2.0 Type-C

Charging Time

≤3h

Physical Characteristics

Shell Material

PC+ABS

Dimensions

182x53x53 mm

Mounting Interface

1/4 thread internal interface

Buttons

On/Off

Indicator Lights

Fixed disassembly & charging
